Configuring Operable Windows

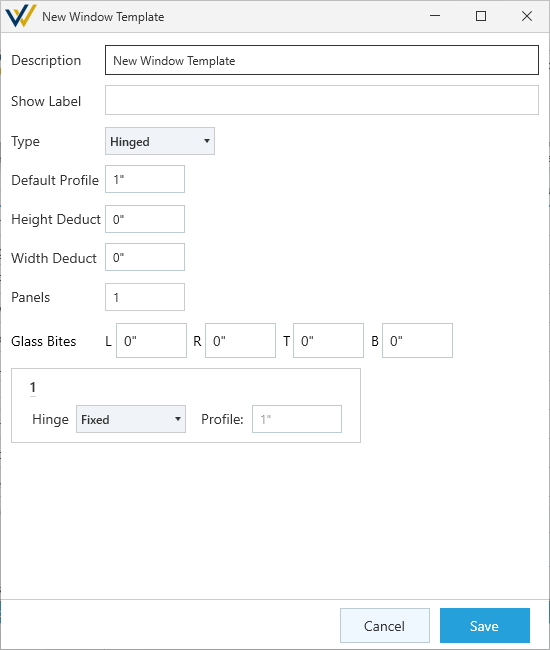

Template Options

Description - Required. Description / name of the door leaf.
Show Label - Elevation label for windows of this type.
Type - Type of operable window / vent. Options include:
- Hinged
- Hung
- Sliding
Default Profile - Default stile / rail profile height.
Height Deduct / Width Deduct - Dimension in inches to deduct from the assigned panel's height and width.
Panels - Number of sashes within this the operable window. For each panel, a panel detail tile will be added below.
Glass Bites - Set the glass bite depth in inches for the:
- L - Left
- R - Right
- T - Top
- B - Bottom

Operation per panel:
- For Hinged Windows:
  - Hinge - Hinge location. Options include:
    - Top
    - Bottom
    - Left
    - Right
    - Fixed
- For Hung Windows:
  - Slide - Slide direction. Options include:
    - Up
    - Down
    - Fixed
- For Sliding Windows:
  - Slide - Slide direction. Options include:
    - Left
    - Right
    - Fixed
Profile - Set the stile/rail profile per panel if different from the Default Profile set above.
